Features:
1. Working Environment: Temperature 5°C to 40°C, Humidity <85%
2. Measurement Range: 32.00°C to 42.99°C (90.00°F to 109.99°F)
3. Power Supply Voltage: DC 4.2V (Built-in 4.2V rechargeable lithium battery, capable of continuous use for 50 hours when fully charged)

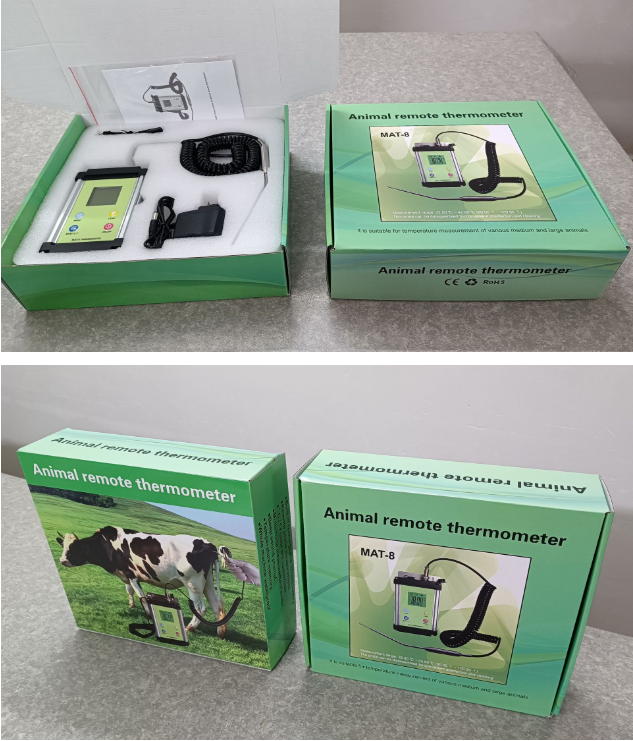

4. Accessories List: Product, sensor cable probe, charger, packaging box, pallet, instruction manual, shoulder strap, certificate of conformity
5. Resolution: 0.01°C (0.01°F)
6. Accuracy: ±0.1°C (±0.2°F)
7. Sensing wire probe: Stretch distance 3 meters
8. Charger specifications:
*Input voltage: AC 100-240V 50/60Hz
*Output voltage: 4.2V with a red indicator light during charging, switching to green when fully charged
*Output current: 0.5A
*Output Interface: 5.5*2.5mm*
| Application |
Pig, Cattle, Sheep and Dog Animals |
| working environment temperature |
5°C-40°C,humidity |
| measurement range |
32 °C-42.99 5°C(90°F-109.99 °F) |
| power supply voltage |
DC 4.2v(Build-in 4.2V rechargeable lithium battery, which can used continuously for 50 hours when full charge. |
| sensor line probe |
stretching distance 3 metre |
| charge parameters |
Input 100-240v 50.60hz
Output: 4.2 DV |
| list of accessories |
main machine , sensor line probes, chargers, packing boxes, trays, instructions, shoulder straps |

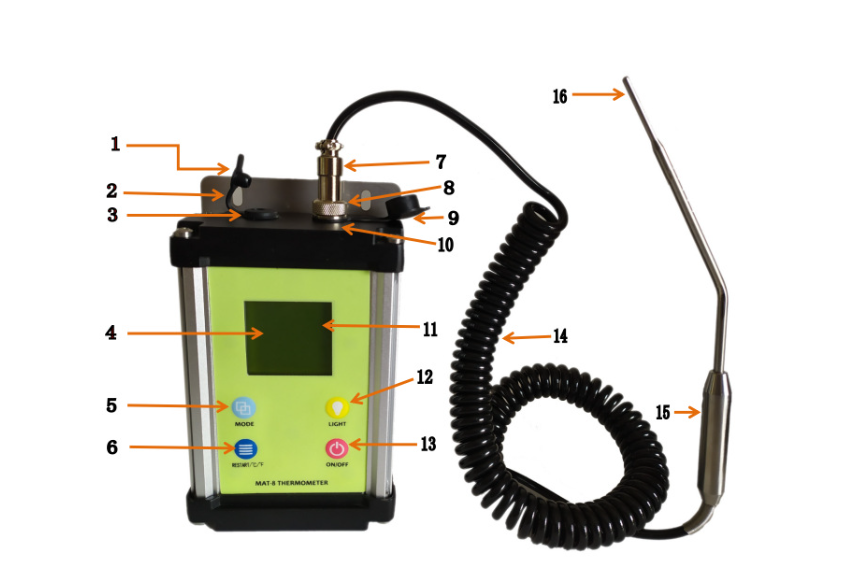

Detail:
1. Power charging port cover
2. Hanging hole
3. Power charging port
4. Display screen
5.MODE conversion lock switch
6.RESTART/ C / F restart / unit conversion touch the button
7. Probe aviation plug8.Aviation plug knob9.Aviation socket cover
10. Probe aviation socket
11. Low voltage indicator
12.LIGHT control touch the key
13.ON/ OFFpower switch control lock switch
14. Spring sensor wire15.Probe handle
16.Probe
Note: for the installation of aviation plug, please insert the probe aviation plug
into the probe aviation socket of thermometer before use. Pay attention to
align the concave point on the side of the aviation plug with the convex point
in the aviation socket, and then lock the aviation plug knob.
